Small-diameter Category 6 RJ45 plugs from Stewart Connector streamline data center patch cables

New plugs from Stewart Connector terminate AWG 28 and AWG 30 cables and accommodate cable diameters up to 0.160".

Nov 19th, 2014
Small-diameter Category 6 RJ45 plugs from Stewart Connector streamline data center patch cables
Small-diameter Category 6 RJ45 plugs from Stewart Connector streamline data center patch cables

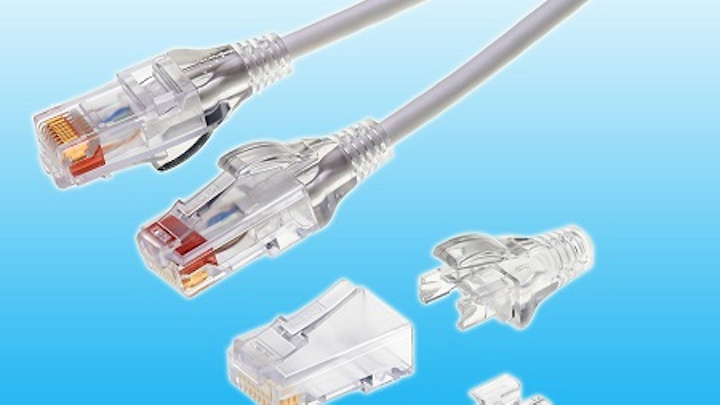

Bel Fuse (NASDAQ: BELFA; BELFB) subsidiary Stewart Connector has announced its new release of small diameter Category 6 RJ45 plugs. The new RJ45 plugs (part no. SS-39100-039) are the latest members of Stewart's family of products engineered to support Gigabit Ethernet (1000Base-T). Offered to meet the requirements of small diameter patch cables in data center environments, the 8-position, 8-wire, UTP modular plugs terminate most 4-pair, AWG 28 and AWG 30, 100 Ohm, stranded and solid unshielded twisted pair cable.

The company says the new plugs accommodate a maximum cable diameter up to 0.160" and copper conductors with overall insulated conductor diameters of 0.025" through 0.030". Stewart says its small diameter Cat 6 plugs notably feature a proprietary contact design and wire alignment system to ensure proper cable-to-plug terminations and robust connections. Further, the plugs are provided with a pair manager to facilitate precise conductor placement, repeatable assemblies, and consistent long-lasting patch cord performance. Additionally, a boot is included to provide bend relief at the cable exit, protect the plug latch with a snag-less tab, and give the finished cable assembly a streamlined appearance.

Plug, load bar and wire aligner components are manufactured of UL94-V0 polycarbonate and feature 50 microinches gold-plated contacts for robust, long-lasting connections. Additional specifications include an operating temperature range of -40 degrees C to +85 degrees C, and durability of 750 matching cycles. Voltage rating is 150 VAC, and current rating is 1.5 A @ 25 degrees C. Optimized for use on Cat6 AWG 28 and AWG 30 patch cords, the unshielded modular plugs are engineered for use in data center applications where the density at the rack level is high, which causes more heat to be generated by the equipment and more cooling is required to ensure its performance.

Cable bundles comprised of AWG 28 and AWG 30 patch cords are 50% smaller than traditional Cat 6 cables, notes Stewart Connector, which helps facilitate improved airflow and cooling efficiencies to reduce operating costs and help physically manage large numbers of cables in a limited space. The new plugs are field-installable with Stewart Connector's standard termination tooling. Average pricing for Stewart Connector's small diameter RJ45 CAT6 (SS-39100-039) plugs is $0.48 each in quantities of 2,500. Delivery is 4 to 6 weeks. Samples are available.

For more detailed information, visit http://belfuse.com/ethernet/modular-plugs/.
