Dual-core nanomechanical fibers replicate optical switching functions

New nanomechanical fibers could greatly enhance data processing.

Content Dam Cim Online Articles 2012 December Lw Dualcore Mechfibre

As reported byCablinginstall.com's sister site Lightwave, a team of UK researchers has developed an elegant dual-core optical fiber that they say can perform the same switching, routing, and data buffering functions as platforms that currently use relatively slow electronic components, just by applying a miniscule amount of nanomechanical pressure.

The new nanomechanical fibers could greatly enhance data processing and also serve as sensors in electronic devices, say researchers at the University of Southampton, England. The work is described in the Optical Society of America’s open-access journal Optics Express, Vol. 20, Issue 28, pp. 29386-29394 (2012).

“Nanomechanical optical fibers do not just transmit light like previous optical fibers,” comments Wei H. Loh, deputy director of the EPSRC Centre for Innovative Manufacturing in Photonics and researcher at the Optoelectronics Research Centre, both at the University of Southampton. “Their internal core structure is designed to be dynamic and capable of precise mechanical motion. This mechanical motion, created by applying a tiny bit of pressure, can harness some of the fundamental properties of light to give the fiber new functions and capabilities.”

The cores in the optical fiber are close enough to each other (less than 1 micron) to be optically coupled – a photon traveling down one core is physically affected by the presence of the nearby second core. By shifting the position of one of the cores by just a few nanometers, the researchers changed how strongly the light responded to this coupling effect. If the coupling effect is strong enough, the light immediately jumps from one fiber to the other.

See also: OFS exploring few-mode fibers for potential 10x bandwidth increase

“Think of having a train traveling down a two-track tunnel and jumping the tracks and continuing along its way at the same speed,” explains Loh. "The flexible suspension system of the fiber easily responds to the slightest bit of pressure, bringing the two cores closer together or moving them apart, thereby controlling when and how the signals hop from one core to the other."

The result is the reproduction, for the first time, of the functions of an optical switch inside an actual fiber strand, say the researchers.

The capability of the fiber may also enable optical buffering, which has heretofore been very hard to achieve. “With our nanomechanical fiber structure, we can control the propagation time of light through the fiber by moving the two cores closer together, thereby delaying, or buffering, the data as light,” says Loh. "Buffers are essential when multiple data streams arrive at a router at the same time; they delay one stream so another can travel freely."

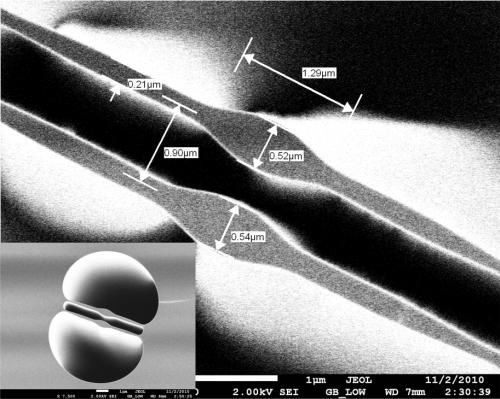

According to the researchers, this is the first time that nanomechanical dual-core fibers have been fabricated directly. Other types of multicore fibers have been fabricated previously, but their cores are encased in glass and therefore are mechanically locked. To create the new fibers, the researchers heated and stretched a specially shaped tube of optical glass with a hollow center containing two cores suspended from the inside wall (see image, above). The fibers maintain this delicate structure as they are drawn and stretched to the desired thickness.

“An implication of our work is that we would integrate more of these functions within the fiber backbone,” adds Loh, “through the introduction of MEMS [micro-electro-mechanical systems] functionality in the fibers." The next step of the research is to test the fibers at longer lengths and to enhance the precision with which they perform switching and other functions. The researchers hope that nanomechanical fibers could reach the market within the next three to five years.
