Cable tester includes report management system

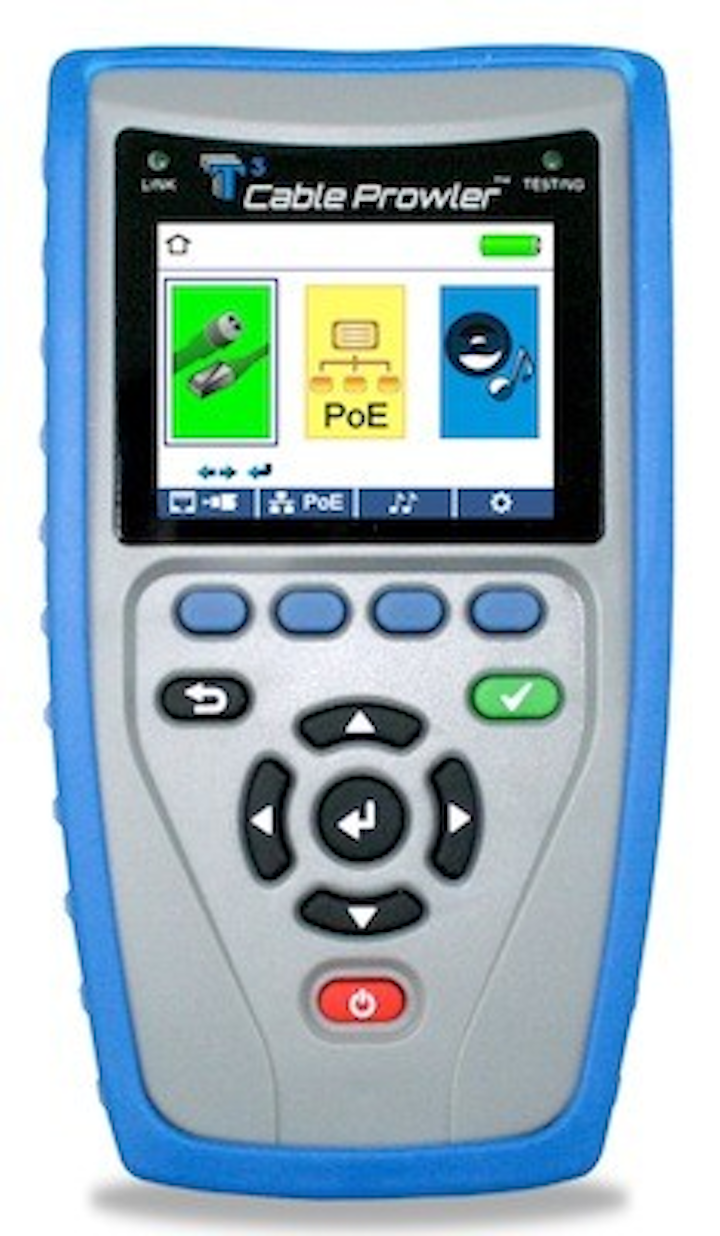

From T3 Innovation, the Cable Prowler combines the functions of a high-end cable and length measurement tester, with the capability to identify link status, link capability and PoE detection.

Content Dam Cim Online Articles 2013 June T3 Cableprowler

T3 Innovation (Camarillo, CA), a provider of advanced handheld test equipment for the cable/telecommunications, datacom/networking, electrical design and maintenance, and residential/CEDIA custom installation markets, has introduced its Cable Prowler cable tester and report management system. Now shipping, the tool combines the functions of a high-end cable and length measurement tester with the capability to identify link status, link capability, and PoE detection. All results are shown in full color on the tester's graphical screen and rely on its internal memory to save results.

“The Cable Prowler provides full cable testing, displaying wire map, numbered ID remotes, and any faults, including shorts, opens, miswires, split pairs, and reverses,” explains Ron Vogel, CEO of T3 Innovation. “It also enables quick identification of a network drop's link capability and current link status.”

Related product: TDR measures length, finds faults on live cables

More: Tester provides vision into dark coaxial cabling networks

The Cable Prowler measures cable length using TDR technology and generates tone levels for signal tracing and cable identification on all pairs, a selected pair, or a selected pin. All of this displayed on a full color graphical display for easy viewing in any environment. The Cable Prowler also has the ability to name each cable and save all test results. Cable results can be exported to a computer via micro USB cable for record keeping and printing. The tester also detects the presence of PoE on the network drop and what class of PoE per IEEE 802.3 af/at with load test for voltage drop. These network tests can also be saved for record keeping.

“The high resolution full color graphical display makes reading the Cable Prowler’s results as easy as it is to operate the unit,” added Vogel. “The Cable Prowler displays wire map in color per TIA-568A/B color codes, and it includes a protective silicone holster and a micro USB connector to export cable and network results, an RJ45 connector and a coax connector.”

A summary of the Cable Prowler's specifications and applications includes the following:
• Detects and reports current link speed and link capabilities for active Ethernet drops up to 1 Gbps
• Link light to identify location on a hub/switch/router port
• Generates selectable tones on selected pins for use with tone tracers
• Stores up to 250 cable or network results with user defined names; view saved cable tests
• Full color graphical wire-mapping
• Ability to define cable names, save cable tests and print ALL results (cable testing & network testing)
• Multilingual (English, French, Spanish)
• Cable Testing and ID: up to 1000 feet (305 meters)
• Split Pair Detection: 3 feet (1meter) to 1,000 feet (305 meters)
• Length Measurement: 0 to 1,500 feet (457 meters), ± (5 percent +1ft)
• Supports eight continuity and ID number remotes (RJ-45)
• Supports 20 RJ-45 and 20 F-connector ID only remotes
• Tests for IEEE 802.3af and IEEE 802.3at (PoE Plus) compliant PoE
• Tests for classes and loads cable up to 25.5 watts
• (at class 4) Identifies Mode A or B (pairs with PoE)
• Size: 1.85in H x 3.6in W x 6.8in L (4.7 x 9.15 x 17.3 cm)
• Weight (with 6 x AA batteries): 18ozs. (510 grams)
• MSRP: $529.95
