Two-way solution for wireless LAN security

Addressing both physical security and logical security will help ensure your wireless communications are carried out safely.

Th 230293

Addressing both physical security and logical security will help ensure your wireless communications are carried out safely.

With centralizedwireless networking becoming more ubiquitous, security is becoming a major focus for customers. When I meet with them, the first comment is often, “What is your wireless security solution?”

Th 230293

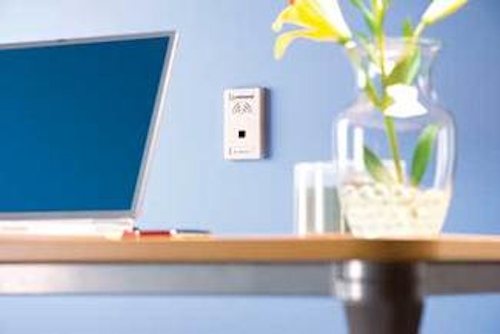

This product, resembling a standard cabling jack, is actually the WiJack wireless access point from Ortronics. Access points that look like other common items are less likely to be targets of theft.
Click here to enlarge image

Enterprise customers already understand the need for wireless access, but are really concerned with the security aspect of Wi-Fi. The best way to answer that question is to describe the security solution in two parts: the physical layer and the logical layer. In this article, we will explore security for a centralized wireless network.

Physical security

When discussing physical security, several questions must be answered, including, “Are your access points secure?” and “Is your centralized controller secure?” Let’s examine these individually.

• Access-point security. One of the biggest issues with the physical security of wireless networks is access point theft. Due to the nature of access point deployments (usually in open, unsecured, common areas), access points can disappear. The best way to combat this issue is to select access points that integrate into your existing structured cabling infrastructure. If the access points look like other common items, they are less likely to be a target of theft.

• Centralized controller security. With a centralized wireless local area network (LAN), the “brains” of the network are centralized in the server-like appliance called a controller. While most controllers have advanced software security embedded to combat hacking, an often-overlooked issue is the controller being stolen. Most enterprises look at wireless networks as non-mission-critical; it’s perceived they do not need the same level of physical protection as a wired network. This could not be further from the truth. Controllers should be located in the same physical location as other networking equipment-in a secured environment.

Logical security

Logical (software-based) security is equally important. The best way to discuss logical security is to understand the basic pillars (authentication, encryption, authorization, and intrusion protection) of any centralized wireless security solution:

Th 230294
This diagram shows the complex and multi-layered measures that can be taken to logically secure a wireless network on a university campus. Faculty, students, contractors, and guests can be assigned different access rights.
Click here to enlarge image

• Authentication. User identity is important on a wireless network. Because there are not any physical ports, it is essential to ensure that only authorized users are allowed access. For auditing and accounting purposes, it is recommended that WPA or WPA2 (defined and further discussed later in this article) be used with 802.1x and a Remote Authentication Dial-In User Service (RADIUS) server. A RADIUS server allows wireless users to be authenticated against backend user databases, such as Microsoft Active Directory, Novell Netware, and LDAP. This provides a sign-on experience for users that is similar to their wired network login. For even higher levels of authentication, most solutions support smart card or token-based authentication, such as SecureID.

• Encryption. A primary concern of wireless is that anyone with a network card can gain access and capture packets with a wireless sniffer. The original 802.11 standard developed Wired Equivalent Privacy (WEP) as a way of encrypting traffic at Layer 2, but most of us have heard the news that WEP is not secure. The answer for many years was to use a virtual private network (VPN) to provide data protection across wireless networks. While this provided strong encryption, it also added a lot of overhead, thereby decreasing throughput. A better way to encrypt traffic is via a Wi-Fi Protected Access (WPA), which uses the Temporal Key Integrity Protocol (TKIP) and dynamic key rotation, making it difficult to capture and decipher the data.

For higher security needs, Wi-Fi Protected Access v2 (WPA2) is based on the 802.11i standard that uses the government-rated Advanced Encryption Standard (AES). WPA2 operates in a similar manner as WPA, but with much higher levels of encryption. In most cases, older client devices may not support WPA2 due to the processing needs required to perform encryption with AES. It’s also important to look for centralized solutions that encrypt and decrypt data at the wireless controller. This way, traffic is protected from the client station all the way to the wireless controller and not decrypted at the access point.

• Role-based authorization. Placing users and devices into roles that have secure access policies is a key feature that only some solutions support via an integrated stateful firewall, which keeps track of the state of network connections traveling through it. (See “Layers 4 through 7”.) Firewall integration into the wireless controller allows for secure separation between the wireless and wired network as well as between individual wireless devices. In a university environment, roles can be created for different types of access, such as student, faculty, guest, and printer. Students may have access to the residence hall networks and certain areas of the school network, while faculty have complete access to the school network but are protected from the residence hall networks. Additionally, printers in classrooms may only be able to use WEP, giving them access only to the specific port level of the print server, even if compromised. Through the use of a stateful firewall, you have multi-layered protection for Layers 3 through 7 of the OSI model.

• Intrusion protection. An intrusion detection system (IDS) is another added feature to bolster the security of any wireless deployment. Wireless networks are susceptible to typical wired LAN attacks as well as to their own unique types of attacks, requiring an IDS be built specifically for them.

Rogue access points are a common intrusion type that can erode the highest levels of security in any organization. All it takes is for someone to install an unsecured access point on your network to leave you vulnerable. Wireless controllers typically have the ability to detect and prevent this and other types of intrusions, or alert administrators to their existence. Some controllers prevent wireless clients from attaching to rogue access points by creating a denial of service (DoS) attack against an unauthorized access point.

Many centralized wireless deployments can program access points to monitor the air. In this type of scenario, the job of the air monitors is to constantly scan all 802.11a/b/g channels for IDS signatures that match a known attack type. Once an attack is identified, the wireless controller can take action to prevent or notify of network intrusions, such as passive and active probing, wireless bridge detection, detection of common attack tools (such as Asleap and Airjack), man-in-the-middle detection and prevention, and client impersonation.

Security implementation

The most challenging part of understanding wireless security technologies is determining where and how to best implement them. The easiest way to remember where to implement these technologies is to correlate them to a position on the OSI stack. Here is an easy-to-remember list.

Layer 1: Physical

  • Wireless intrusion detection and prevention
  • Rogue access point detection, classification, and destruction
  • IDS/IPS signature analysis

      Layer 2: Data Link

      • 802.1x, 802.11i (WPA)
      • TKIP, AES, WEP
      • Role and AAA-based VLANs

      Layer 3: Network

      • Access control lists (ACLs)
      • VPN termination (L2TP/IPSEC), PPTP
      • Network Address Translation (NAT) • Dynamic Host Control Protocol (DHCP)

      Layers 4-7: Transport, Session, Presentation, and Application

      • Per user/flow stateful firewall
      • Policy-based access
      • Deep packet inspection
      • Captive portal
      • Data rate anomalies/thresholds

      Layer 1: Physical

      Wireless intrusion detection and prevention refers to security software that protects against threats to your wireless solution as well as those from your wireless LAN. Threats from your wireless network include those from Microsoft Windows-based machines that enable wireless and wired networks to be bridged through rogue access points that are unauthorized on your LAN, ad hoc networks connected between users, and other unsecured wireless bridges. Threats to your wireless LAN include DoS, man-in-the-middle, and impersonation attacks.

      A solid centralized wireless solution will have a software feature set embedded into the controller that, when coupled with access points acting as air monitors, will provide a higher level of protection for these types of potential security breaches. Most of the centralized wireless solutions on the market have the ability to not only detect and block such threats, but also to identify the physical location of the offender for disposition. Each implementation may be different, but the overall goal is the same between vendors.

      IDS/IPS signature analysis refers to security software that searches the traffic transversing the centralized controller for attacks using specific signatures. Most viruses as well as other security breaches have specific digital signatures. This software scans the data streams in the controller for such signatures.

      Layer 2: Data Link

      802.1x, 802.11i (WPA 1.0, 2.0) refers to the standards for Wi-Fi-Protected Access protocols. These protocols, coupled with TKIP, AES and, to some extent, WEP, enable a higher level of encryption and security on the data stream from the access point to the centralized controller. With most centralized wireless solutions, the data path from the access point to the controller maintains its security profile. This is critical technology because without it, all traffic leaving the access point destined for the controller would be plain-text. Anyone with packet-capture tools would be able to read the data stream.

      Role and AAA-based VLANs refer to virtual local area networks that can be classified by roles (administrator-defined) or by authentication status. If a particular VLAN is defined as http-only traffic, anyone associated with that VLAN will only be allowed to pass http traffic. All other traffic is denied.

      Layer 3: Network

      Access control lists, which are defined in the centralized controller configuration, allow or deny data streams based on previously defined attributes. This concept was first widely used in the Cisco router architecture. Other security technologies normally deployed at this level include VPN termination (L2TP/IPSEC), Network Address Translation (NAT), and Dynamic Host Control Protocol (DHCP) addressing.

      NAT and DHCP are technologies used to disguise the true IP address and network identifier to the greater Internet. Most service providers and enterprises use these technologies to conserve IP addresses, but they also have a security aspect. If an enterprise has 100 PCs with Internet access, each PC is given an internal IP address. Those addresses are routed to the wide area network connection, where they are turned into a single address to the Internet. With this type of addressing scheme, it is very difficult to spoof (maliciously copy) a valid IP address.

      Layers 4 through 7

      As noted earlier, a stateful firewall keeps track of the state of network connections traveling through it. The firewall is configured to separate different data streams from different destinations. Only data streams of a known connection state will be allowed to transverse; all others will be discarded. This is an added layer of security because each authorized destination needs to be configured in the centralized controller.

      Policy-based access and Captive Portal are often configured together. This technology lets network administrators configure access to the wireless LAN based on connection type or end-user authentication. If a user is connecting to the network from an unknown PC, the administrator may determine that a secondary login to the network is required. If that is the case, a Captive Portal page would be displayed in a browser window, forcing the user to login a second time. This may or may not be the same as the logon to the PC. The technique is also commonly used in the hospitality industry for hotspot/in-room network access, to capture usage-based information for billing purposes.

      Deep packet inspection is when the centralized wireless controller’s stateful firewall determines that a data stream (series of packets) requires additional investigation before continuing on to the end user. Deep packet inspection is very resource-intensive and should be used rarely, such as allowing packets to pass from one connection type but not another.

      Data rate anomalies/thresholds refer to the ability of the network administrator to set per-user, per-VLAN, or per-SSID connection characteristics. If any of these characteristics are exceeded, the wireless controller can react a certain way. For example, if a particular SSID is trying to pass more packets than is expected, the controller can be configured to stop all traffic from that SSID until the source of the packets is identified. This may reduce the number of DoS attacks.

      Hopefully, you now have a much deeper understanding of network security as it pertains to a centralized wireless implementation. As with any technology, wireless security solutions are constantly being updated to handle not only today’s latest security threats, but also tomorrow’s.

      TONY WALKER is wireless marketing manager with Ortronics/Legrand (www.ortronics.com).
