Product Focus: fiber-optic test equipment

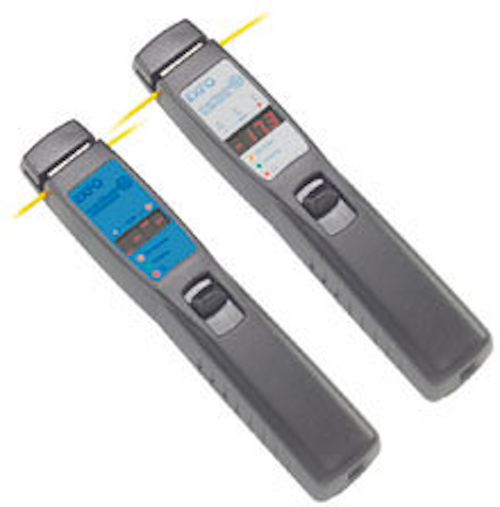

FiberFinder, a patented non-disruptive technology that induces less than 1 db loss, is designed to take the guesswork out of fiber identification...

Th 0702cim Focusexfo
Th 0702cim Focusexfo
Click here to enlarge image

FiberFinder, a patented non-disruptive technology that induces less than 1 db loss, is designed to take the guesswork out of fiber identification when upgrading or characterizing an optical link in FTTx and large central office installations. It includes the company’s LFD-300 live fiber indentifier and TG-300 tone generator. Installed at the transmitter site, the TG-300 clip-on device adds a 0.1-db signature to the live signal, which the LFD-300 detects at the other end in a matter of seconds, thereby eliminating the risk of disconnecting the wrong fiber. The tool is designed to avoid network downtime during upgrades, and promises little or no effect on a link’s loss budget.

EXFO
www.exfo.com

Fault-finder with universal interface

Th 0702cim Focusideal
Click here to enlarge image

The enhanced VFF5 visual fault finder features a universal 2.5-mm interface designed to support ST, SC, and FC optical connectors, plus a non-roll metal body that’s protected from water damage and slippage by a Santoprene over-sleeve. This hand-held light source is built to locate breaks, poor mechanical splices, and damaged connectors in fiber-optic cables. A highly visible red light travels approximately 2.5 miles of jacketed or bare fiber-optic cabling. According to the company, the upgraded VFF5 offers improved battery life (up to 80 hours in continuous mode). The tool can also assist with terminating mechanical splices or internal splice connectors where leaking light is an indicator of a poor fiber cleave or other misalignment.

IDEAL INDUSTRIES
www.idealindustries.com

Optical power meter

Th 0207cim Odm
Click here to enlarge image

The RP 460 optical power meter, part of the company’s “Contractor Series” of fiber-optic testers, is billed as the industry’s smallest device of its kind to offer 1,000 data storage measurements that can be downloaded via USB to a laptop. The NIST-traceable tester is built for long battery life, and includes a 2.5-mm universal connector input designed for all leading connector styles. The company also provides a range of compatible LED and laser light sources for a complete end-to-end testing solution.

OPTICAL DESIGN MANUFACTURING
www.odm-inc.com

Duplex fiber talk set

Th 0702cim P Fist
Click here to enlarge image

This full-duplex fiber-optic talk set is said to be price-competitive with walkie-talkies, and designed to be more reliable in premise environments. Features include stereo headsets, boom microphones, and ST or FC adapter ports. Available for singlemode or multimode, the talk sets are rechargeable, and feature a VOX circuit designed to extend battery power.

FIBER INSTRUMENT SALES
www.fiberinstrumentsales.com

Extended range identifier

Th 0702cim Wilcom
Click here to enlarge image

The F6225 optical fiber identifier features an increased range of +24 to -58 dBm. This non-intrusive probe uses a non-destructing macro-bending technique designed to protect the fiber from damage or overstress. It can detect traffic direction and measure signals on live fiber-optic cable without disconnecting. The unit features hands-free operation, three separate audible tones when detecting traffic direction and for test tone detection, a patent-pending ambient light reduction shield designed to decrease the interference of ambient light during use, and three field-interchangeable adapter heads.

WILCOM
www.wilcominc.com
