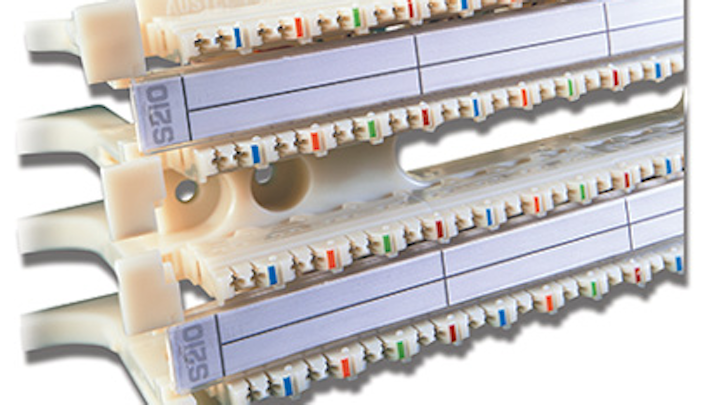

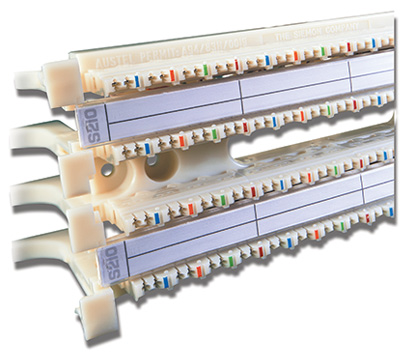

Siemon Connecting Block System

Building upon the success of its patented connecting block technology, Siemon’s Connecting Block System comprises its Category 6 S210 connecting blocks and Category 5e S110 and S66 connecting blocks.

Content Dam Cim En Articles Print Volume 25 Issue 12 Departments Product Focus Siemon Connecting Block System Leftcolumn Article Thumbnailimage File
IDC blocks

Building upon the success of its patented connecting block technology, Siemon’s Connecting Block System comprises its Category 6 S210 connecting blocks and Category 5e S110 and S66 connecting blocks. The system includes field-terminated 19-inch panels, horizontal and vertical field termination kits, and a variety of accessories including patch plugs, cable assemblies, cable managers, covers, frames, brackets, housings, towers, bridging clips and designation labels. The S110 and S66 connecting block systems also offer prewired and modular jack blocks for connection to phone equipment, including connectorized 25-pair backbone cable. As part of the system, Siemon offers Category 6 and 5e UTP crossconnect wire and its Extra Large Building Entrance Terminal frame, billed as ideal for large installations where space is a premium.

Siemon, www.siemon.com

Micro terminal blocks with push-in connection technology

For convenient wiring in confined spaces along with variable mounting options, Phoenix Contact has introduced its MP 1.5 micro terminal blocks with push-in connection technology. This new micro block accommodates the increasing miniaturization of machine, switchgear, and control cabinet design. The MP 1.5 blocks feature a connection capacity of 0.14 mm² to 1.5 mm² (26-16 AWG). Offering flexible mounting options, this terminal block can be fastened on NS 15 DIN rail, direct mounted with securing pins, or screw-in mounted with self-locking flanges. With their test openings, the micro terminal blocks provide a testing option at every terminal point. The MP 1.5 micro blocks can be marked by self-adhesive marker strips at each point, ensuring precise and accurate wiring. With a compact design and clear markings, the MP 1.5 micro terminal blocks offer a pinpointed, time-saving wiring solution, the company says.

Phoenix Contact, www.phoenixcontact.com
