Audio-to-fiber box enables bi-directional communications

Can be used with either multimode or single mode fiber for short or long distances, respectively.

Content Dam Cim Online Articles 2012 December Sitech Fiber Bitdriver

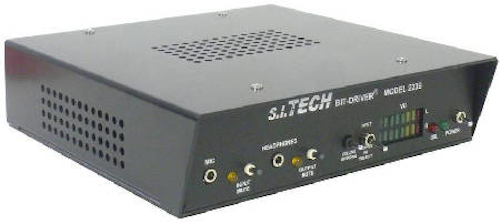

S.I. Tech has introduced its new full duplex (bi-directional) Audio to Fiber Bit-Driver, Model 2239. The box is designed to enable bi-directional audio communications with a dedicated fiber link over short or long distances.

The Model 2239 provides two-way stereo audio over fiber, and can be used with either multimode or single mode fiber for short or long distances, respectively. Typical applications include paging systems, music distribution and control with audio tones.

Related resource: Recommendations for home theater, high-end audio cabling

The box has 1/8” (3.5 mm) microphone input and stereo line level phono and speaker phono jack inputs. The device digitizes audio input into 16 bit samples at a 48KHZs rate. Digitized high quality audio is transmitted across fiber to a remote end and converted back to analog format.

The Model 2239 also supports line input volume adjustment to maximize the use of the digitized channel, and speaker/headphone volume adjustment. The device also has a mute button.

Visit S.I. Tech for additional information.
