Test for fiber continuity without tools

When you have to test the continuity of fiber in a telecommunications closet and do not have any tools with you, finding the appropriate light source or meter can take valuable time and possibly make a bad impression on your customer.

Th Cim63994 13

Bryan A. Ignatow, Sprint Paranet

problem

When you have to test the continuity of fiber in a telecommunications closet and do not have any tools with you, finding the appropriate light source or meter can take valuable time and possibly make a bad impression on your customer.

solution

In a closet that has existing and operating equipment, you can use the light-emitting diode (led) indicators of existing equipment as a light source. Since the light sources can vary in color, you can test multiple fibers at once.

procedure

1 Attach fiber patch cable to both ends of the strand(s) under test.

2 Hold the patch cable up to the existing equipment`s lighted led.

3 Make sure you`re using a "constantly on" led rather than one that blinks.

4 Also, if possible, use exposed leds rather than reflected or guided ones, because the latter have less power.

5 Verify the light at the other end of the cable, but do not look directly into the cable.

6 You can test multiple strands of fiber, depending on the number of led colors present in the closet.

Th Cim63994 13
Click here to enlarge image

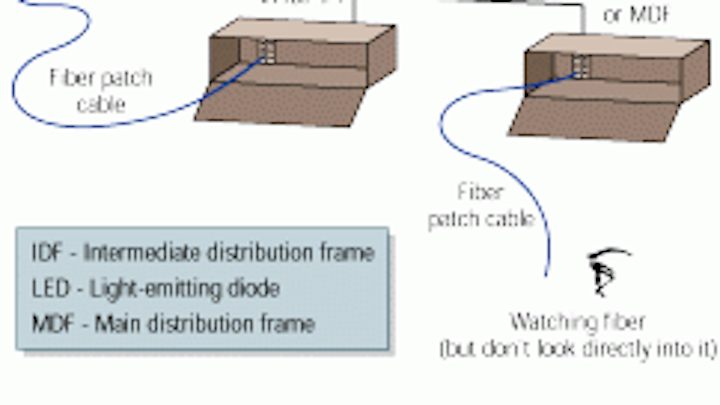

Shown here is the basic setup of a fiber-optic link and the instruments you can use to test for fiber continuity, even if you have no traditional continuity-testing tools.

Bryan A. Ignatow is a senior technical analyst with Sprint Paranet (Dallas, TX), a nationwide network services provider owned by Sprint. Bryan can be reached at e-mail: ignatow@ sprintparanet.com. This tip was submitted for the Cabling Installer Tips` Contest at Cabling Installation Expo `98, held last October in Atlanta, GA.
