How to load a modular patch panel

Video shows how to load jacks into a modular panel, and how to use bend-radius-management tools.

Content Dam Etc Medialib New Lib Cablinginstall Online Articles 2011 01 Cableorganizer Modular Patch Panel Demonstration 35403

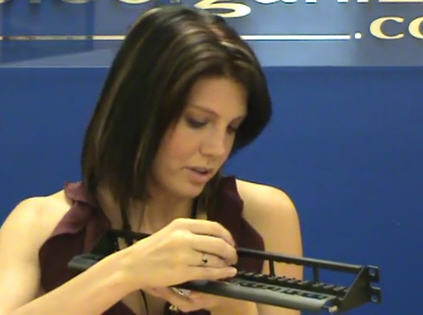

The distributor uses a video to detail and demonstrate the features of Panduit's Mini-Com patch panels. The metal patch panels are shipped without jacks loaded into them; in the two-and-a-half-minute video, the process of loading and unloading the jacks is shown.

The video demonstrates the flat version of Mini-Com, which is also available as an angled panel. The panel used in the video also includes a strain-relief bar, which is an optional item.

Check out the video demo here.
