Product Focus: raceways

The PMR40 multi-channel metal raceway features a proprietary offset snap-on faceplate and divider wall design that locates data terminations outside the data channel, increasing data cablecapacity.

Th 297782

Maximum capacity solution

Th 297782
Click here to enlarge image

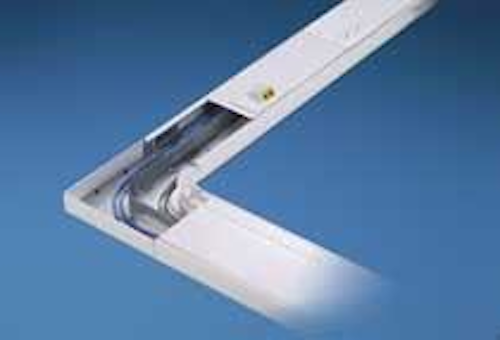

The PMR40 multi-channel metal raceway features a proprietary offset snap-on faceplate and divider wall design that locates data terminations outside the data channel, increasing data cablecapacity. This TIA/EIA-568-B and 569-B solution maintains a 2-inch bend radius throughout the system for routing high-performance 10-Gbit copper and fibercable. The raceway accepts both snap-on and standard NEMA double-gangfaceplates. Pre-punched mounting holes are designed to eliminate drilling orremoving knockouts. This system is available with an assortment of fittings, faceplates, and accessories in white or almond.
PANDUIT
www.panduit.com

Secure design for protected distribution systems

Th 297783
Click here to enlarge image

The Secure Solutions Raceway (WSSR) is a high-capacity system designed to provide modularity and scalability in hardened Protected Distribution System(PDS) installations. This steel solution incorporates a proprietary structurallyinterlocking base and cover, as well as secure boxes, fittings, and transition channels. In addition, the WSSR series features permanent connection of allbase components and fittings, designed to protect against overt, covert, andsurreptitious attacks. Access to the PDS system is possible only throughpull boxes that are secured by padlocks. The WSSR also has an enhancedmechanical security feature that isdesigned to eliminate the need forwidescale application of epoxy afterinstallation.
WIREMOLD/LEGRAND
www.wiremold.com

Fiber raceway designed to UL code

Th 297784
Click here to enlarge image

This fiber raceway system is compliant to UL 2024, and has been evaluated, tested and approved for installation in riser applications in accordance with the National Electric Code. The cable management system is designed for routing, protecting, and storing fiber or copper cables in mission-critical network locations, including data centers, central offices, entrance facilities, and equip-ment rooms. Available in five sizes,this fiber raceway system is designed for simplified installation andreconfiguring. Ducting material is halogen-free, UV light resistant, and rated UL 94V0 to meet local fire and smoke guidelines.
LEVITON NETWORK SOLUTIONS
www.leviton.com/networksolutions

Multiple application metal raceway

Th 297785
Click here to enlarge image

From single- and multi-channel to pre-wired raceway systems, this line of metalraceways is designed for power, voice, data, and video applications. A proprietary Handi-Screw is designed to eliminate difficult to handle conventional screws on the jobsite, while boxes are designed for a clean and seamless appearance.
HUBBELL PREMISE WIRING
www.hubbell-wiring.com
