MIMO DAS ceiling mount antennas provide high multi-port performance

Pulse Electronics says its PIMinator antennas offer industry-leading Port 1 and Port 2 gain patterns and inter-port isolation.

MIMO DAS ceiling mount antennas provide high multi-port performance for wireless carriers
MIMO DAS ceiling mount antennas provide high multi-port performance for wireless carriers

Pulse Electronics has introduced a new line of distributed antenna system (DAS) in-building ceiling mount multiple-input/multiple-output (MIMO) antennas. Part of Pulse Electronics’ PIMinator line of low passive intermodulation (PIM) antennas, the company says the new antennas have high port-to-port isolation and superior gain patterns for both ports 1 and 2, providing wireless carriers with improved data throughput and implementation flexibility. They operate from 698 MHz through 5900 MHz, and at -155dBc have some of the lowest PIM specifications on the market, asserts Pulse.

The company says its competitor analysis shows that the Pulse DASLTE500NFMIMO has superior performance. There is minimal crosstalk between the ports and horizontally stable radiation patterns across all frequency bands. Through Pulse’s patent-pending innovation these antennas achieve -25dB or better of inter-port isolation, preventing a reduction in signal-to-noise ratio and maintaining a high network data-rate throughput.

“Often MIMO antennas have problems with non-circular gain patterns with high deviation from min-to-max gains. In MIMO or neutral host applications the wireless carrier may not have adequate performance on both ports,” explains Paul Fadlovich, director of infrastructure, Pulse Electronics Wireless Division. “Pulse MIMO antennas lead the industry with a low 6dB or less of peak gain differential. We’ve identified some competitors with as high as 16dB of peak gain differential in their model of low-PIM MIMO antennas.”

Low PIM improves DAS system performance because PIM reduces or degrades base station performance, notes the company. Pulse Electronics says the new product's extremely low PIM spec of -155dBc at 2 x 20 watts (2 x 43dBm) ensures high data rates to support streaming video for mobile devices. With low PIM there are fewer dropped calls, higher data rates, and fewer problems for cellular phone users and operators.

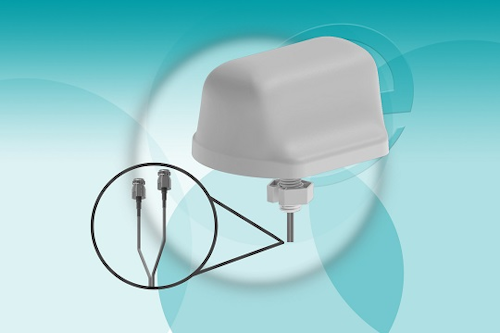

Pulse Electronics’ DAS MIMO antennas come in two configurations, the DASLTE500NFMIMO with an N-female connector and a soon-to-be released Mini DIN version. The patent-pending PIMinator antennas are housed in aesthetically pleasing injection-molded radomes. They are RoHS compliant and PIM certified and come individually boxed or bulk packed. The DAS MIMO antennas are on display at Pulse's booth 42 at the LTE North America Forum 2014, being held at the Intercontinental Hotel, Dallas, TX, from November 18-20, 2014.
