UV-rated nonmetallic enclosure boxes
Arlington’s nonmetallic enclosure boxes are ideal for protecting and securing power backups, security devices and other equipment indoors or out. The boxes are shipped with factory-installed hinged covers and meet NEMA 3R requirements for outdoor use. They are available in 4 sizes: 12x12x4, 12x12x6, 11x11x3.5, and 7x8x3.5 and in black or gray. The boxes are available with or without a backplate to accommodate mounting and access to components post-installation. Each box contains a padlock latch and a knockout for a cam lock; the boxes also include half-inch and three-fourths-inch knockouts.
Arlington Industries, aifittings.com
Outdoor cabinet assembly bundle series
To simplify outdoor power and connectivity projects, Transition Networks created the OCA Bundle Series, which offers a single ordering number for the company’s Outdoor Cabinet Assembly and its most popular Power over Ethernet switches, power supplies, and accessory solutions. According to Transition Networks, the bundle saves time in selecting and procuring essential items for applications including security and surveillance, wireless, and intelligent traffic. All bundles include a high-impact-resistant 18x16x10 polycarbonate enclosure with a hinged/removable door that provides access to equipment during installation and maintenance. Two DIN rails are preinstalled for mounting a switch and power supply. A magnetic door contact switch, ground terminal blocks, AC/DC termination blocks, and wire glands are also preinstalled.
Transition Networks, transition.com
S-Series enclosures for flexible building connectivity
HellermannTyton’s S-Series wall-mount enclosures feature solutions for high-density splicing, building or floor distribution networks and servicing individual subscriber drops. The configurable interior and flexible entry point options of the S3 and S5 enclosures help the installer adapt to specific needs, or they can be factory-configured for standardization within a provider’s installation area. “Buildings and their communications requirements are growing more diverse than ever before,” HellermannTyton explains, “requiring an almost infinite degree of flexibility and configurability in the scale and functionality of the building entry point.”
HellermannTyton, hellermann.tyton.com

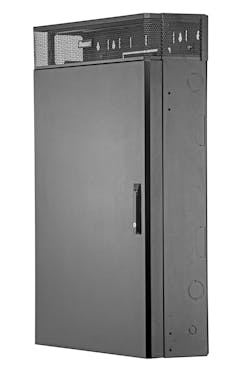

PanZone TrueEdge Vertical Wall-Mount Enclosure
The Panduit PanZone® TrueEdge Vertical Wall-Mount Enclosure provides a comprehensive architecture allowing up to 36 inches of active equipment depth to be mounted in a low-profile application. This enclosure houses traditional horizontal equipment vertically on a wall and minimizes network infrastructure investment, providing a solution to eliminate a rack or a cabinet (TR in a box and micro data center). The structurally engineered design has a premium static load rating of up to 400 pounds and best-in-class thermal ratings to eliminate equipment failure, Panduit points out. The enclosure is scalable, offering a variety of configurations for servers, switches, and edge computing. It can withstand optimum load capacity for deployments of server and switch configurations. And it is configurable, available in 3RU active or passive, 6RU active or passive, or 9RU active or passive—allowing customization opportunities to fit the user’s needs.
Panduit, panduit.com
SmartRack 12U wall-mount cabinet
Tripp Lite's SRW12UHD SmartRack 12U heavy-duty, low-profile server-depth side-mount wall-mount rack enclosure cabinet is designed to house EIA-standard 19-inch rack equipment in telecommunications rooms, retail locations, classrooms, back offices and other areas with limited floor space where equipment must be secured and out of the way. Because the low-profile cabinet mounts sideways, it extends less than 25 inches from the wall while housing equipment up to 32.5 inches deep, including 1U servers, uninterruptible power supply systems, battery packs, switches and patch panels. The removal front panel and side doors lock to prevent damage, tampering or theft. The top, bottom and sides are vented, allowing airflow and keeping equipment cool. Top and bottom ports allow easy cable routing. The SRW12UHD comes fully assembled and ready to mount to the wall. Square and 12-24 threaded mounting holes and numbered rack spaces ease installation. Vertical mounting rails adjust in 7/8-inch increments.
TrippLite, tripplite.com
