ICC's 8-inch residential combo enclosure eases phone, video cable installation

Combo enclosure is designed to act as the central communications distribution point in a residence.

Content Dam Cim Online Articles 2013 April Icc Comboenclosure

ICC (La Mirada, CA) has introduced its new 8” residential cable combo communications enclosure in six (6) packs. The combo enclosure is designed to act as the central distribution point in a residence for phone and video connectivity; it is intended for installation in apartments, condos and small townhomes with 2 to 3 bedrooms.

Each box contains six enclosures, covers, and voice/video modules. Offering the combo in six packs offers convenience and lowers the unit cost of each enclosure compared to buying them individually, says ICC.

Related product:Hollow shank drill bit efficiently installs wires, cabling

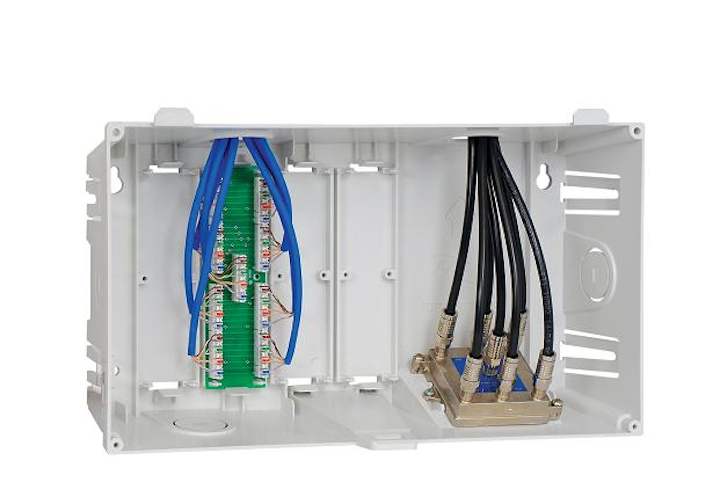

The enclosure is made of UL-rated ABS plastic, with a base designed to be installed between wall studs or wall-mounted. The base has knockouts allowing cables to enter and exit from the top, bottom and sides. The enclosure's cover snaps on with a tab for a padlock to prevent unwanted access.

The included voice module has a 110 IDC bridged design with 8-ports, allowing phones to be installed in eight locations. The included 2 GHz CATV module has one input and six outputs allowing video to be connected to six locations.

ICC’s 8” combo enclosure is available through ICC's nationwide network of ICC Elite Preferred Distributors. To locate a distributor, visit www.icc.com/distributor or call ICC at 888-ASK-4ICC (275-4422).
