Cabling Spaghetti Slide 9

Nov 28th, 2012
Cabling08

NEXT SLIDE >>>>

Attribution: By Achim Hering (Own work) [GFDL or CC-BY-3.0], via Wikimedia Commons

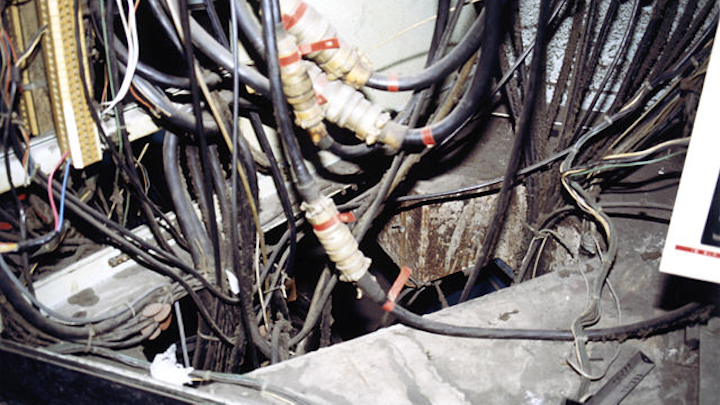

Point Tupper, Nova Scotia Coal power plant control room cabinet interior

Opened up, the control room cabinet’s interior also reveals inadequate firestops located directly above the plant’s cable spreading room. The cabinets sit on top of gaping holes which, at times, are capped with steel plate. “Great heatsink,” Hering wryly comments.
