icotek Adds AT-HA Grommet to IMAS-CONNECT™ System for Compact Connector Integration

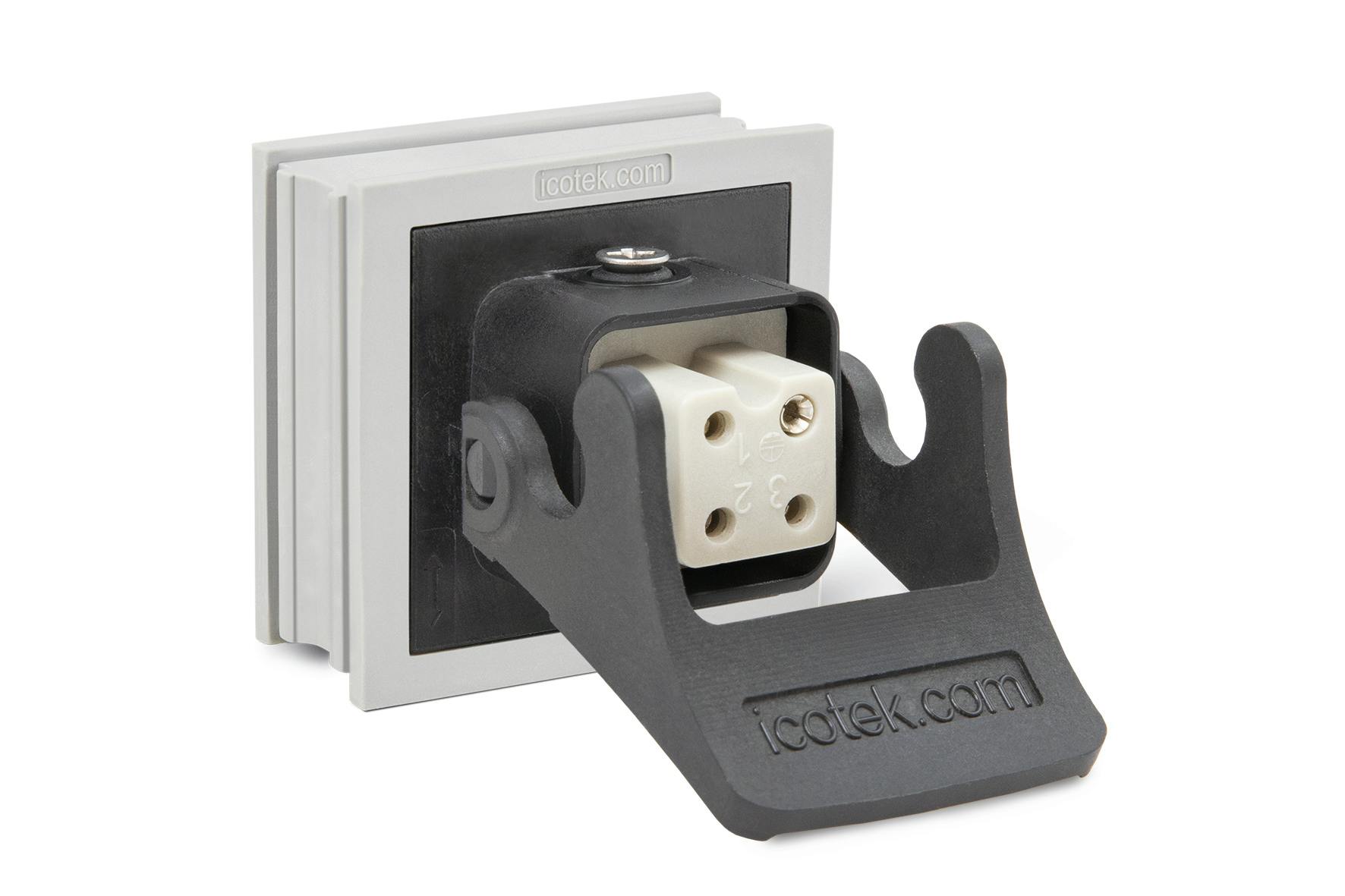

icotek has introduced the AT-HA grommet to its IMAS-CONNECT system, allowing for the compact integration of 3A and 4A plug inserts directly into adapter cable entries. The design removes the need for additional cut-outs, making it a streamlined solution for industrial applications.

The grommet is built on icotek’s KT cable grommet “large” and features a polyamide body that is compatible with all KT-based cable entry systems. The AT-HA is delivered with a pre-assembled locking element and works with 3A and 4A insert sets and connector housings for M20 or M25 with cable glands.

Advantages include:

·       Space-saving integration of connectors into cable entry frames

·       Compatibility with existing frame solutions

·       No extra cut-out needed

·       Simple assembly

·       Broad compatibility with plug insert manufacturers

Technical characteristics:

·       Protection class IP65 (plugged in) and IP54 (with optional cover)

·       Cable diameters for M20 and M25 cable glands: 6-12 mm (M20), 13-18 mm (M25)

·       Flame class: UL 94 V-0, self-extinguishing

·       Operating temperature: -40 °C to +100 °C

·       Made from halogen-free and silicone-free materials

According to icotek, the solution improves flexibility, reduces space requirements in control cabinets, and ensures safe, standard-compliant integration across a wide range of industrial environments.
