The new icotek 360° DB Distribution Box will be presented for the first time in the company's booth #4550 at ATX West (Feb. 7-9) in Anaheim, California as an exhibition highlight.

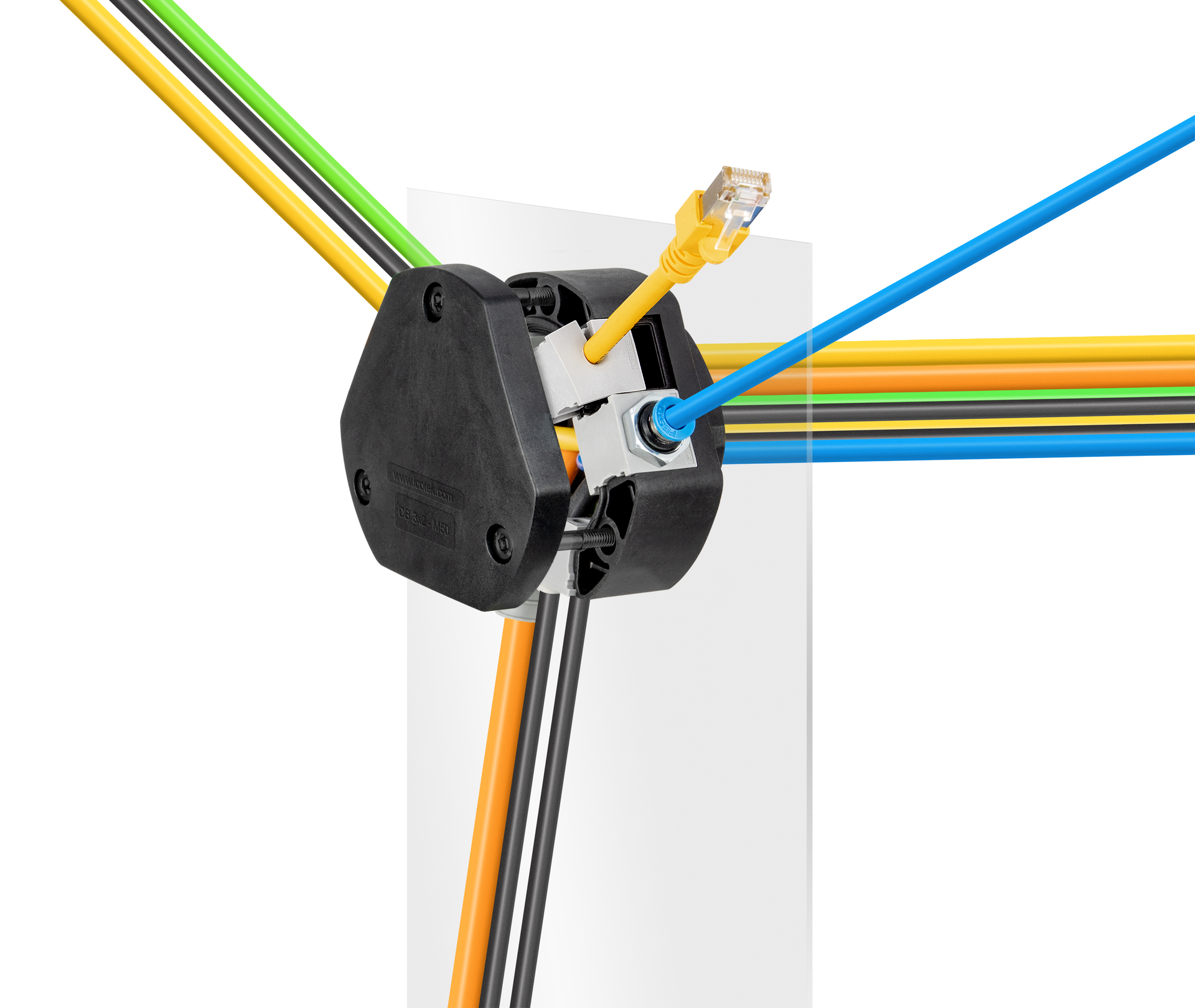

The company says its DB Distribution Box product is completely splittable, and enables 360° cable entry and cable routing. 1 to 15 mm diameter cables with and without plugs are routed, sealed and, at the same time, relieved of strain in accordance with DIN EN 62444 specification.
Using multiple or single grommets (icotek part no. KT-DT), up to a maximum of 48 cables can be routed in the DB Distribution Box, thus achieving a very high packing density. Cables can be distributed 360° from the central point in almost any desired direction.
icotek's DB Distribution Box is a cable transit with standard metric cut-outs and is secured with an included lock nut. Owing to the screwable cover and use of slotted cable grommets, subsequent retrofitting and service work is easily possible at any time without much effort, as noted by the manufacturer.
Extensible platform options
The new 360° cable entry can be combined in many ways with the manufacturer's KT grommet system, as well as the hybrid IMAS-CONNECT adapter system from icotek. The total platform represents an extremely flexible cable routing and cable entry system that can be assembled very quickly, said the company.
The product's degree of environmental protection is IP54 and its permitted temperature range is between -40°C and +140°C. Areas of application for the DB Distribution Box are diverse. Certifications such as ECOLAB, HL3 EN 45542-2 and RoHS have already been granted to the product.
The icotek DB Distribution Box is made of polyamide and is halogen and silicone-free. Samples, certificates and further information are available directly from the manufacturer.
