Starline releases 1200-amp Starline track busway for data center, industrial environments

Dec. 8, 2016
The largest amperage busway from Starline joins the company’s T5 suite to offer data center and industrial networks flexibility along with reliability.

Starline recently introduced the 1200-amp Starline Track Busway. The latest addition to the company’s line of track busway options delivers “even more power without losing any of the flexibility that Starline customers have come to rely on,” the company said when introducing its largest-amperage offering.

Mark Swift, the company’s director of marketing, commented, “We are excited to introduce this new design of our Starline Track Busway. With continued innovation as one of the main goals of our organization, we strive to develop and release new products that meet the increasing power and density requirements of our customers.”

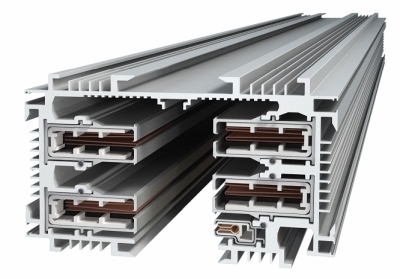

Like its other track busway systems, the 1200T5 1200-amp system supports mission-critical environments like data centers as well as industrial networking environments. The 1200T5 Starline Track Busway has a similar look and feel to its sibling offerings. “It uses the same patented u-shaped busbar design that creates constant tension and ensures the most reliable connection to power,” the company noted. “Best of all, the same plug-in units can be used for all systems in the T5 series—from the 250-amp to the new 1200-amp. The simple turn-and-lock insertion of plug-in units combined with the busways continuous access slot provide endless flexibility for how end users need to lay out their operations.”

The company’s director of engineering, David Grafton, added, “During the design process, our main goal was to maintain the same plug-in unit compatibility and flexibility across all T5 busway systems, which we successfully accomplished with this busbar design.”

The 1200-amp is available with copper/aluminum conductors and an optional ground conductor. The outer aluminum housing incorporates four data channels that are compatible with Starline’s latest cable routing and management accessories. Additional accessories meant for the busway opening are also available, including access panels, restricted access points, and optional closure strip.
